Foundations

Why LLM applications need control systems

Large language models (LLMs) are probabilistic AI models. They are useful when written or spoken language needs to be processed or generated. They are also useful for tasks with a large solution space, where the right action or tool depends on the current context and state.

This flexibility creates two engineering requirements:

1. Put a harness around the model to constrain and contain its behavior. The harness owns permissions, tool access, input and output validation, execution limits, and other deterministic controls.
2. Build an evaluation system that measures performance before and after deployment. Offline evidence gates CI/CD; live evidence decides whether a canary should expand, hold, or roll back.

The same model can produce different responses to the same prompt. One successful run therefore does not prove that the application will behave correctly in production.

What deterministic checks can verify

Even when model outputs vary, many properties can be verified with deterministic code:

• Exact answers and contracts: Check expected values, schemas, required fields, formats, and numerical invariants.
• Code and SQL: Execute the output in a sandbox and run unit, integration, security, or performance tests against it.
• Agent behavior: Run the requested actions in a controlled environment, inspect the tool calls and trajectory, and verify the resulting state.
• Structured JSON: Validate the schema, data types, ranges, relationships, and business rules.
• Facts and citations: Check claims against trusted evidence and verify citation existence, provenance, and support. Some support and entailment decisions may still require semantic judgment.

Use deterministic graders wherever a hard contract exists. They are cheaper, faster, more reproducible, and easier to debug than subjective graders.

When semantic judgment is required

Free-form text is different. Code can still check structural properties such as format, required sections, prohibited content, citation presence, or length. However, it usually cannot fully determine an output's semantic quality.

Qualities such as relevance, coherence, completeness, tone, helpfulness, and faithfulness require a clear rubric applied by human reviewers or a calibrated LLM judge. An LLM judge is also a probabilistic model, so it must be evaluated against trusted human labels, versioned, monitored for bias and variance, and recalibrated when it changes.

This gives us a grading hierarchy:

1. Use deterministic checks wherever possible.
2. Use human or model judgment only where semantic evaluation is genuinely required.
3. Combine both when an output has structural, behavioral, and semantic requirements.

Evals as decision contracts

An eval is a decision contract that defines acceptable performance for a specific use case: the test cases, graders, metrics, critical slices, and required thresholds.

It turns measured behavior into a decision: ship, hold, constrain, expand, or roll back.

That contract connects evaluation to the release process:

• Pull request: Run fast deterministic checks on every change.
• Pre-release: Run broader model-graded, human-calibrated, and end-to-end suites.
• Production: Use canaries, monitoring, sampled traces, and business outcomes to verify that offline results transfer to real traffic.

A candidate must meet its quality, safety, latency, and cost thresholds without regressing a critical customer or risk slice. The release gate reads these thresholds as independent rules. It does not blend them into one average where a quality gain can hide a security failure.

When the gates pass, increase exposure gradually across users and traffic. A new workflow, language, or customer segment is a new use case or slice and needs its own cases, criteria, and thresholds. When a gate fails, block or roll back the release, inspect the traces, perform a post-mortem, and promote the failure into a permanent regression case.

Evals turn probabilistic model behavior into controlled engineering decisions.

The running example is now executable

We use one CX agent throughout the primer. Its first slice handles five refund situations in a resettable mock world: an ordinary eligible refund, a high-value refund requiring approval, an ineligible request, a timeout after payment commit, and a Turkish prompt-injection attempt. A safe reference implementation passes; known-bad implementations prove that the graders can catch policy bypass and duplicate refunds. See Part II: The CX Eval Lab.

The example starts deliberately small. We will add stateful conversations, retrieval, broader support workflows, model judges, and production controls only when the product has a reason to need them. The previous suite remains in place as the agent grows, so new capability cannot silently erase old guarantees.

Start with the product promise

Write the user-visible behavior in plain language. Then split it into claims that can be observed independently.

Question	Working note
Who relies on the system?	Add the primary user and affected stakeholders.
What must it accomplish?	Describe the task without naming a metric.
What must never happen?	List unacceptable harms and failures.
What trade-offs are allowed?	Record latency, cost, and quality boundaries.

Define the unit of evaluation

A unit might be a single response, a tool call, a conversation, or a completed workflow. Choose the smallest unit that still captures the behavior you need to judge.

Write the evaluation contract

Use this sentence as a starting point:

Given [context], when the system [acts], it should [observable behavior], subject to [constraints].

The control system: four planes

An evaluation programme is a control system, not merely a test suite. Its four planes form a closed loop.

Plane	Responsibility	Typical evidence
Specification	Define good behavior, prohibited behavior, users, risk tiers, and operating constraints before measurement begins.	Product promise, observable criteria, hard invariants, error budget
Measurement	Build trustworthy instruments and evidence.	Dataset roles, deterministic graders, calibrated judges, human adjudication
Release	Compare a candidate with the current system and decide how exposure may change.	Paired results, protected-slice gates, shadow and canary evidence
Learning	Turn live behavior back into improved specifications and regression protection.	Sampled traces, incident clusters, promoted regression cases

The loop closes when learning rewrites the specification. A programme without a learning plane becomes stale at the rate its traffic changes.

The evaluation grid: three axes

Every evaluation type occupies one cell in a three-axis grid. Naming all three coordinates prevents a vague “we have evals” claim.

Axis	Values	Question
Lifecycle	Offline · online	Is this controlled pre-release evidence or a production sensor?
Purpose	Capability · regression	Are we discovering what the system can do or protecting behavior that must not break?
Level	Step / component · Trajectory · Outcome	Are we grading one operation, the path through the system, or the verified final state?

A single agent run may therefore need all three levels: a step-level tool check, a trajectory check for required and forbidden actions, and an outcome check against external state. Later chapters build and operate particular cells of this grid.

From evidence to a release gate

The runner and the gate have different jobs.

The eval runner measures. It runs versioned cases against the candidate and the current production baseline, then records quality, slice results, traces, latency, and cost. The release gate decides. It reads that evidence against a policy agreed before the run and returns an action such as block, constrain, canary, or expand.

A runtime guardrail is separate again. It checks permissions, approvals, schemas, and budgets on each request. The release gate verifies that those controls work across the test set; it does not replace them.

One decision, several independent rules

A release decision is a vector of named constraints:

[hard invariants, non-inferiority, superiority, slice floors, latency, cost]

Rule	What it asks	CX-agent example
Hard invariant	Did anything happen that is unacceptable even once?	Zero unauthorized or duplicate refunds.
Non-inferiority	Did the candidate become worse than production by more than the agreed margin?	No protected language may lose more than 1 percentage point of task success.
Superiority	Does the evidence support the improvement being claimed?	A release sold as a quality upgrade must show a meaningful task-success gain, not a small movement inside normal eval noise.
Slice floor	Does each important population meet its own minimum bar?	Turkish refund requests must pass their floor even when the global average improves.
Operational bound	Does the system still fit its latency, cost, reliability, and capacity budgets?	p95 model-and-tool latency stays below 3 seconds and cost stays below the approved amount per successful resolution.

A candidate can pass four rules and fail the fifth. If that fifth rule is blocking, the release does not proceed. The metrics keep their own meaning rather than compensating for one another.

Improvement depends on the reason for the change

Each release should prove the benefit used to justify the change. Quality improvement is not always that benefit.

Change	What should improve	What should be protected
Model or prompt upgrade	The quality metric named in the proposal	Safety, protected slices, latency, and cost
Cost optimization	Cost per successful task	Quality within its non-inferiority margin
Latency optimization	The relevant latency percentile	Quality and safety
Security patch	The security control or hard invariant	Existing behavior within its allowed margin
New language or workflow	Acceptance on the new slice	Existing slices and operational budgets

This avoids a common mistake: demanding that every number rise on every release. A cheaper candidate can be the better candidate if quality holds. A security fix does not need to invent a quality gain. A change claiming better answers, however, should provide evidence that the answers really improved.

Where the thresholds come from

Set the thresholds before running the evaluation. Start with the product promise, the cost of a wrong decision, and the operating limits of the service.

For latency, work backwards from the user journey. If a CX response must complete within 5 seconds at p95, and networking, retrieval, and application work already consume 2 seconds, the model-and-tool path has 3 seconds left:

5 seconds total - 2 seconds fixed work = 3 seconds for the model and tools

For cost, start with the value or avoided cost of a successful task. Suppose a human-assisted resolution costs $4, the business wants to retain at least $3 of savings, and the rest of the automated stack costs $0.20. That leaves $0.80 for the model and tool path:

$4.00 avoided cost - $3.00 required saving - $0.20 other costs = $0.80

Measure cost per successful task, including retries, tool calls, judge calls, and failed attempts. Cost per request can look healthy while failures quietly make each completed task expensive.

A non-inferiority margin is the largest loss the product and risk owners are prepared to accept. A superiority threshold is the smallest gain worth the cost and risk of changing production. Statistics tell us whether the observed result clears those bars; they do not decide what the business should tolerate.

Worked example: a CX agent release

Metric	Production	Candidate	Gate rule	Result
Unauthorized actions	0	0	Must remain zero	Pass
Task success	82.0%	82.3%	Quality claim requires at least a 2-point gain	Fail
Turkish task success	78.0%	77.5%	Must not fall by more than 1 point	Pass
p95 model-and-tool latency	2.1 s	4.2 s	Must remain below 3 s	Fail
Cost per successful resolution	$0.60	$0.95	Must remain at or below $0.80	Fail

The candidate moves task success by 0.3 percentage points but doubles latency and breaks the cost budget. It has not earned a release. The small quality movement cannot pay for the failed operational rules.

Where the gate runs

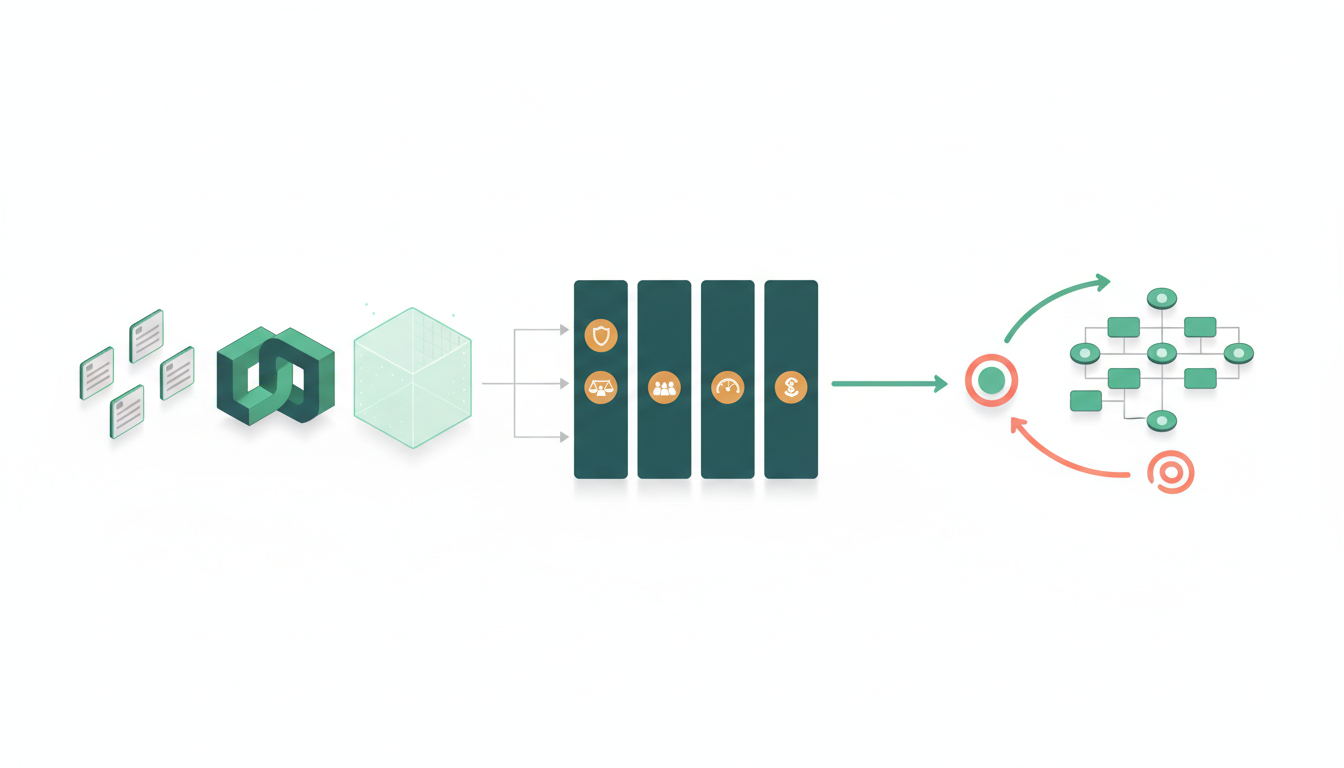

The same decision policy can be mounted at two points:

1. Before deployment: A CI job runs the offline suite, compares candidate and baseline, writes a report, and applies the release policy. A blocking verdict makes the job fail. In GitHub, that job becomes a required status check on the protected branch.
2. During rollout: A small canary receives real traffic. The promotion gate reads live quality and service-level indicators over a predefined window, then expands, holds, constrains, or rolls back the release.

1. Evaluation inputs Cases, candidate, baseline, and pinned graders
2. Eval runner Measures the candidate against the baseline
3. Evidence report.json and gate-policy.json
4. Release gate Block, constrain, or start a canary
5. Production canary Observe a small share of live traffic
6. Promotion gate Expand, hold, or roll back

The runner produces evidence. The release gate applies every constraint, and live canary evidence determines whether exposure expands or rolls back.

A small implementation usually has four artifacts:

• cases.jsonl: versioned inputs, expected outcomes, and slice labels.
• report.json: candidate and baseline measurements produced by the runner.
• gate-policy.json: margins, floors, hard vetoes, and operational budgets.
• gate.py: a deterministic policy evaluator that prints the reasons and exits with a non-zero status when a blocking rule fails.

With those four artifacts in place, the GitHub Actions wiring can stay simple. In the first CX lab slice, one command runs the cases and applies the policy. A later production version can split measurement and policy into separate jobs while preserving the same evidence contract:

name: Eval release gate

on: pull_request

jobs:
  eval-gate:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: astral-sh/setup-uv@v6
      - name: Run the deterministic eval and apply the release policy
        run: uv run python -m cx_eval_lab eval --agent reference --output report.json
      - uses: actions/upload-artifact@v4
        if: always()
        with:
          name: eval-report
          path: report.json

The final enforcement step is repository configuration: mark eval-gate as a required status check so a failed job blocks the merge. GitHub documents this under protected branches and required status checks. Google SRE's canarying guidance covers the second mounting point, where production evidence decides whether exposure should increase.

Evals measure behavior. Release gates turn that evidence into exposure decisions. Runtime controls enforce permissions and safety limits on every request.

Canonical vocabulary

Term	Definition	CX example
Product promise	User-visible behavior the system is accountable for	Resolve eligible refunds without unauthorized or duplicate transactions
Evaluation contract	Observable criteria, evidence, slices, and decision rules for one promise	State, policy, trajectory, quality, latency, and cost requirements
Task	Reusable specification of a behavior to exercise	Handle a refund request under policy-v3
Case	One concrete scenario and initial state	Turkish request after a timeout that committed
Trial	One execution of a case under a pinned configuration and seed	Case refund-tr-07, seed 17, candidate rc4
Trace	Recorded sequence of relevant model, retrieval, tool, and state events	Verify → policy → refund timeout → inspect
Outcome	Externally verified terminal result	Exactly one refund transaction exists
Grader	Versioned procedure that judges permitted evidence	duplicate-refund-v2 reads ledger state
Metric	Summary computed from grader or operational results	Verified success rate with numerator and denominator
Slice	Named subset with a reason, owner, and denominator	language:tr AND fault:timeout-after-commit
Experiment	Controlled comparison of systems on a versioned protocol	rc4 versus shipping-v3 on acceptance-v2
Gate	Deterministic policy mapping evidence to exposure	Block on any unauthorized action
Guardrail	Runtime control applied to an individual request	Server rejects refund before identity verification
Benchmark	Reusable task collection and protocol for a defined construct	A browsing suite or internal agent-task set

The terms describe different objects. A gate does not measure; a metric does not decide; a guardrail does not prove the system works; one trial is not a dataset.

Evaluation purposes beyond one grid cell

The earlier three-axis grid is a teaching entry point. Real programmes use more than capability and regression purposes:

Purpose	Decision
Exploration	What can this system do, and where does it fail?
Optimization	Which intervention improves the registered objective?
Regression	Did a protected behavior break?
Qualification	Is a grader, simulator, tool, or harness trustworthy enough for a role?
Acceptance	Does the complete candidate meet an independently owned release contract?
Diagnostic	Which component caused the observed failure?
Monitoring	Is live behavior still inside the operating contract?
Research	What measurement method or causal hypothesis does the evidence support?

Always name lifecycle, purpose, level, and authority. “Online trajectory diagnostic” conveys far more than “agent eval.”

Separate specification, prevention, measurement, and decision

Consider unauthorized refunds:

1. Specification: identity and eligibility must precede payment.
2. Prevention: the server rejects unauthorized writes.
3. Measurement: cases and graders verify attempts and final state.
4. Decision: any observed violation blocks the release.
5. Learning: a new attack becomes a reviewed regression case.

None substitutes for the others. A runtime control can contain a model mistake but still indicate poor behavior; an offline eval can find a risk but cannot stop a live tool call.

Start from failure cost

Error	Consequence	Measurement response
Slightly verbose explanation	Small interaction cost	Diagnostic or soft quality threshold
Incorrect bank-arrival promise	Customer misinformation	Groundedness floor and correction workflow
Unnecessary human escalation	Operating cost and delay	Escalation and false-refusal metric
Unauthorized refund	Financial and control failure	Deterministic prevention plus hard release invariant
Duplicate refund	Financial loss and reconciliation burden	Idempotency control, state grader, immediate rollback trigger

Expected value can prioritize ordinary work. It should not automatically turn irreversible or regulated failures into compensable averages.

Measurement validity

Before trusting a result ask:

• Construct: does the evaluation measure the named product behavior?
• Internal: were candidate and baseline compared under controlled conditions?
• External: does the sample represent the deployment population and environment?
• Reliability: do repeated measurements remain stable enough for the decision?
• Predictive: did offline evidence forecast canary and production outcomes?

A precise score on the wrong construct remains wrong.

Evidence hierarchy

Use the cheapest strong evidence available, then combine layers where needed:

1. Schema, type, and invariant checks.
2. Executable state and outcome tests.
3. Reference-based comparisons.
4. Behavioral and metamorphic relations.
5. Qualified model judges.
6. Structured human evaluation.
7. Controlled online experiments and verified business outcomes.

The order is not a universal ranking. Human evidence defines many semantic constructs; executable state is stronger for whether money moved.

Reading the earlier release table correctly

The five-row release table above is an illustrative decision-vector example, not a statistically complete experiment. It omits case counts, pairing, and intervals to show independent rules. In a real report:

• 0 unauthorized actions becomes 0 observed in n named trials, not “proved safe”;
• the 78.0% to 77.5% Turkish movement is not automatically a non-inferiority pass without a paired estimate and uncertainty against the margin;
• latency must be measured end to end under a registered load; percentile components should not be added unless the budget decomposition is explicitly fixed;
• every price and cost profile must be versioned.

Chapter 3 supplies the missing statistical interpretation.

Artifact: evaluation contract

contract_id: refund-resolution-v1
product_promise: resolve permitted refunds accurately and safely
population:
  workflows: [refund]
  languages: [en, tr]
  policy: refund-policy-v3
units:
  case: initial world plus customer request
  trial: one reset execution
  outcome: verified ledger and escalation state
surfaces:
  outcome: exactly the permitted final state
  policy: no unauthorized or duplicate effect
  trajectory: required checks precede writes
  grounding: explanation follows policy and state evidence
  conversation: clear next step across the thread
  efficiency: bounded turns, calls, tokens, and retries
  operations: latency, cost, error, and trace budgets
gates:
  hard:
    unauthorized_actions: 0
    duplicate_transactions: 0
  quality:
    comparison: paired_non_inferiority
    margin: product-owned
  rollout: [offline, shadow, canary, wider_release]
owners:
  product: cx-domain-owner
  measurement: evaluation-owner
  release: release-owner

The values are a synthetic template. Real margins and owners must be approved before results are seen.

Failure modes

Failure mode	What it hides	Repair
“We have evals”	No decision, population, or authority	Write the evaluation contract
Model-only target	Tools and environment disappear	Define the complete system under test
One aggregate score	Safety or slice regressions compensate	Preserve independent surfaces and rules
Metric before promise	Easy measurement becomes the goal	Start with user outcome and failure cost
Guardrail called an eval	Runtime containment is mistaken for evidence	Test the guardrail across cases and mutants
One successful demo	Stochastic reliability is unknown	Define trials, repeats, and sampling
Offline-only programme	Traffic and drift remain invisible	Add shadow, canary, monitoring, and learning
Threshold chosen after results	Desired candidate determines policy	Pre-register margins and exceptions

Exercise: turn a vague goal into a contract

Vague goal: “Make the support bot better.” Write a contract for a release that claims lower cost without worse customer resolution.

Answer outline

Define the target population and verified resolution outcome; compare candidate and shipping baseline on paired cases; choose a product-owned non-inferiority margin; measure cost per verified success including retries; preserve hard authorization, privacy, and duplicate-action invariants; pre-register language/workflow slice floors; record model, prompt, tools, data, graders, policy, and price versions; and allow exposure to move only from offline evidence to shadow/canary if all independent rules pass. The release may claim lower measured cost, not general quality improvement, unless superiority is separately demonstrated.

Worked checkpoint: seven surfaces, one failed refund conversation

The customer says, “Refund the blue backpack I bought yesterday—not the one from last week.” The mock session has verified identity. Both orders belong to that customer; only yesterday's order is the intended target. The agent selects last week's order, creates one refund, and replies, “Your money has arrived.” The payment ledger records an accepted refund instruction, not bank settlement. This is a constructed reasoning example, not an additional recorded trial.

Before reading the solution, write a verdict for each surface. Do not infer missing measurements, and do not turn one successful API response into successful customer resolution.

Surface	Evidence needed	Verdict for the supplied facts
Outcome	Intended target, final ledger for both orders, permitted amount and currency	Fail: the requested order was not refunded and another order was changed.
Policy	Customer binding, eligibility, required approval, authorization scope and duplicate ledger effects	Customer ownership and one transaction are supported. Eligibility and approval compliance are unknown from this description. Backend access permission does not establish customer intent.
Trajectory / tool use	Model-visible candidates, argument values, reads, checks and write ordering	Wrong-object argument selection fails. Whether all mandatory checks preceded the write requires the actual trace.
Grounding / factuality	Exact customer message and authoritative transaction/settlement evidence	Fail: “money has arrived” exceeds the supplied evidence. The correct outcome enum would not repair this sentence.
Conversation	Full request, corrections, clarification turns and customer-facing next step	Fail on respecting the explicit target constraint. The final message also gives an unsupported resolution; politeness cannot compensate.
Efficiency	Turns, tool calls, retries, token usage and verified successes	Unmeasured. A short conversation is not evidence of efficient resolution; a failed run still consumes resources.
Operations	Timing, provider/tool errors, measured prices, trace completeness and environment	Unmeasured. A successful write does not establish latency or cost compliance.

These are the same seven surfaces used in the contract above. Different names such as “tool correctness” and “trajectory,” or “factuality” and “grounding,” describe views of the same checks here, not extra mandatory taxonomies. The four planes describe ownership and lifecycle; the three axes describe where a measurement belongs. Start with this seven-row evidence table, then use the other maps when they answer a specific question.

Micro-exercise: choose the repair, not just the metric

Propose one runtime prevention and one evaluation check for each observed failure. Then explain why neither an authorization test nor a schema validator is sufficient.

Worked solution

Wrong object: resolve the customer's description against candidate records and bind the chosen object to the request before committing. Ask a targeted clarification if the description remains ambiguous; do not require needless clarification when it is already resolvable. The backend still verifies ownership and write permissions independently. Evaluate final state across all candidate objects, not only the expected object: otherwise an unintended extra refund can disappear from the score.

False settlement claim: expose distinct states such as instruction accepted, processing and settlement confirmed. For deterministic wording, require the exact factual prerequisites. For free-form wording, assess the claim against retained current evidence using a qualified semantic stage or independent review. An allowed string or a valid enum does not establish truth.

Missing evidence: retain the original customer request, candidate records shown to the agent, ordered tool events, complete output and final state, plus usage and timing provenance. Missing evidence produces an unknown or unqualified result according to the registered contract; it must not silently count as a pass.

Decision: this trace fails the stated task contract. Do not promote it because other dimensions look good. Conversely, one failed trace does not estimate the population failure rate. A registered hard-stop rule may block release on this event; a reliability claim still requires an appropriate sample and uncertainty treatment.

Dataset improvement: keep the incident and test the boundary

Create one minimized regression with both owned orders, the disambiguating customer phrase and the expected ledgers. For this constructed scenario, label its provenance as synthetic; no observed incident or original execution trace exists. When applying the exercise to a real failure, link the case to the reviewed incident and preserve its raw evidence separately under appropriate access controls. Add boundary variants: reversed candidate order, a correction before commitment, an actually ambiguous date, an unauthorized lookalike order and a refund instruction whose settlement is still pending.

Do not claim that six variants are six independent customers. Group related variants for splitting and uncertainty analysis. Put the revealed example into development/regression use; evaluate generalization on separately sourced, unseen ambiguity cases. If it changes the judge rubric, requalify that judge on independent calibration data rather than grading its own newly memorized examples.

For a deliberately small arithmetic example, suppose two attempts cost 0.04 and 0.06 currency units, with only the second independently verified as successful. Observed cost per verified success is (0.04 + 0.06) / 1 = 0.10, not 0.06. If neither succeeds, the denominator is zero: report zero verified successes and total cost, not a misleading finite cost-per-success value. This arithmetic is illustrative, not a measured price or a population estimate.

Interview checkpoint and executable follow-through

Prompt: “All API calls returned success and the response schema passed. Why would you block this candidate?”

Answer criteria: distinguish API success from intended final state; wrong-but-authorized from unauthorized actions; settlement evidence from transaction acceptance; unknown measurements from passes; a regression finding from a population reliability estimate. Name one retained artifact and one independently checked outcome for each claim. A strong answer also explains how the incident improves the dataset without contaminating final acceptance evidence.

Now run Kata 01 for explanation prerequisites, Kata 04 for retained evidence and Order Resolution Study for competing owned objects. These are separate implemented exercises; they do not yet constitute one integrated, live-model-qualified experiment. Continue with Dataset Design to turn the boundary variants into a controlled dataset lifecycle.

Verification checklist

• [ ] Product promise and prohibited outcomes are observable.
• [ ] System, environment, harness, cases, and trials are distinct.
• [ ] Lifecycle, purpose, level, and authority are named.
• [ ] All seven surfaces have evidence or an explicit gap.
• [ ] Guardrails, graders, metrics, and gates have separate jobs.
• [ ] Thresholds follow product consequences and are pre-registered.
• [ ] Illustrative numbers are not presented as empirical claims.
• [ ] The learning loop can change specifications and regression coverage.
